Machine Control

Machine Control

Hartfiel Automation understands the importance of a well built, effective, working machine. That is why Hartfiel Automation spends a great deal of time selecting top brand names to provide customers exceptional machine control.

Categories

PLC
Power Panel C70Power Panel C70 - C-Series Power Panels are terminals with a built-in PLC. The Intel Atom processor provides enough performance to allow applications to achieve cycle times down to 1 ms. Automation Runtime, which provides up to eight task classes, is the basis for this. To allow optimal use of this performance, the Power Panel C70 has a wide range of integrated interfaces: POWERLINK, Ethernet, X2X Link, USB as well as optional CAN.

I/O Input and Output
Machine IOx20 system - with its well thought-out details and a sophisticated ergonomic design, the from b&r is more than remote I/O system, it complete control solution. depending on user's demands individual application requirements, family makes possible to combine exact components necessary.

Remote I/O with IP67 protection MountRemote I/O with IP67 protection Mount, connect and you're ready to go. This is the new dimension for remote I/O mounted directly on the machine. Its credit card size design allows for mounting in the smallest areas. No space whatsoever is required in the control cabinet. IP67 protection withstands the harshest environments. As fast as a centralized solution. Connections are made using open fieldbus systems.

Electrical Cabinet Components
C22 Compact Pilot devicesC22 - C22 Compact pilot devices share the same attractive design as our M22 modular pushbuttons, but are designed with “monoblock” construction. Contact blocks are built-in to each device without the need to purchase or assemble separate back-of-panel components.

Easy 500/700/800 Programmable RelaysEasy 500/700/800 Programmable Relays - 3 families make up the easy Relay product line: easy500, easy700, and easy800. They offer more than 35 styles that support from 12 I/O up to a network of up to 320 I/O points providing the ideal solution for lighting, energy management, industrial control, irrigation, pump control, HVAC and home automation. Once easy products are installed, changes are easily accomplished through front panel programming, eliminating the need to change wiring and minimizing downtime.





HMI

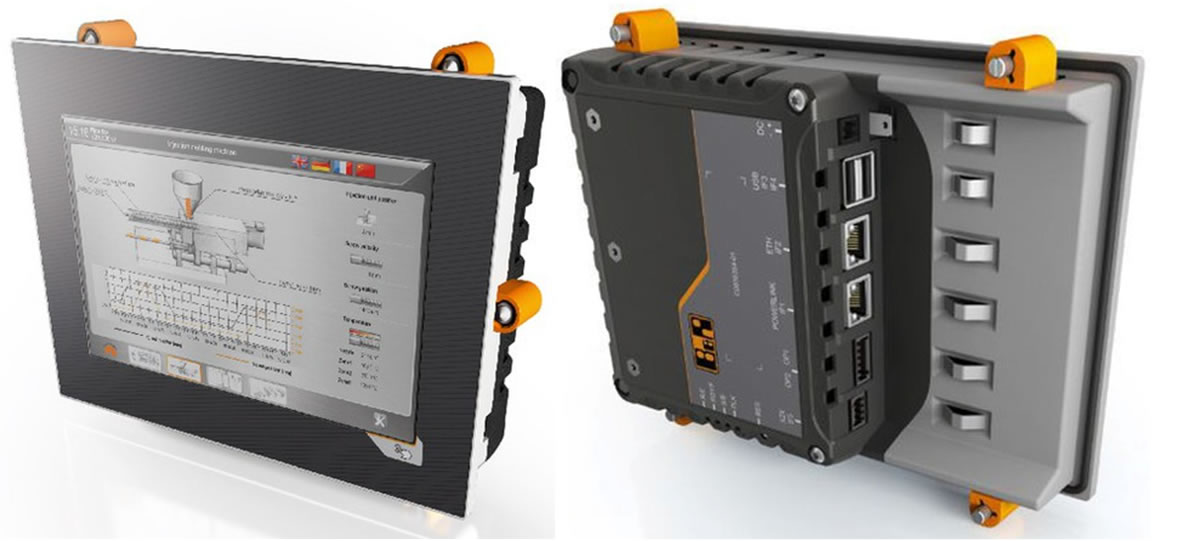

The Power Panel C70 controller version is equipped with a 333 MHz Intel Atom CPU, 256 MB DDRAM, 16 kB FRAM and 2 GB onboard flash drive. This controller provides a built-in touch screen and is being offered in three display sizes ranging from 5.7" to 10.1". The Power Panel C70 achieves cycle times as fast as 1 ms. POWERLINK and standard Ethernet, 2x USB 2.0 and X2X Link, as well as optional RS232, RS485 and CAN interfaces meet all connection requirements. Both of these device series have an extremely compact design, minimal installation depth and an intelligent cable outlet arrangement, making these panels easy-to-mount space savers. They also have no hard disks, fans or batteries, which makes them maintenance-free. The front of the panel provides IP65 protection, making these devices extremely well-suited for harsh industrial environments.

HMO Machine ControllersPower Power Panel C70 - the Power Panel T30 is a dedicated HMI device that can be operated in 2 different modes. On one hand, it operates as a web browser device using standard technology (frameless full screen mode). On the other hand, the terminal can also be used optimally with Visual Components. One of the two integrated functions is simply selected during configuration. The data connection is based on standard Ethernet with all the advantages related to easy and affordable cabling.
